Schematics of Astronomy

I created this page to collect some schematics of astronomy. I will add more in the future.

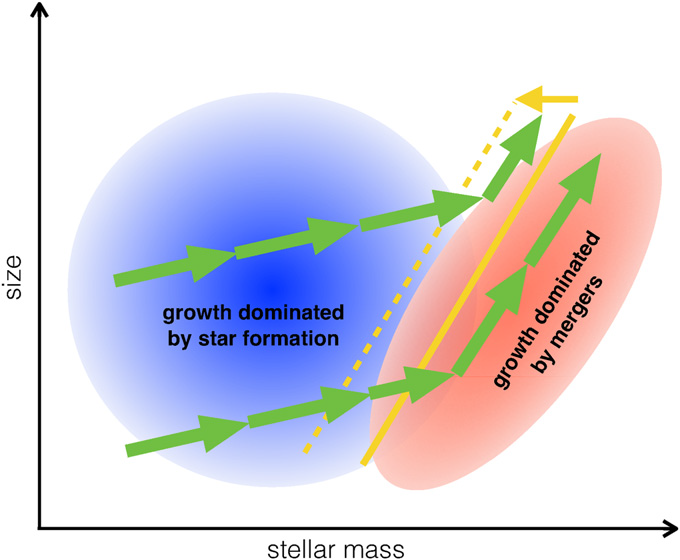

Figure 28 from van Dokkum et al. (2015)

Illustration of possible average tracks of galaxies in the size–mass plane from z ∼ 3 to z ∼ 0.

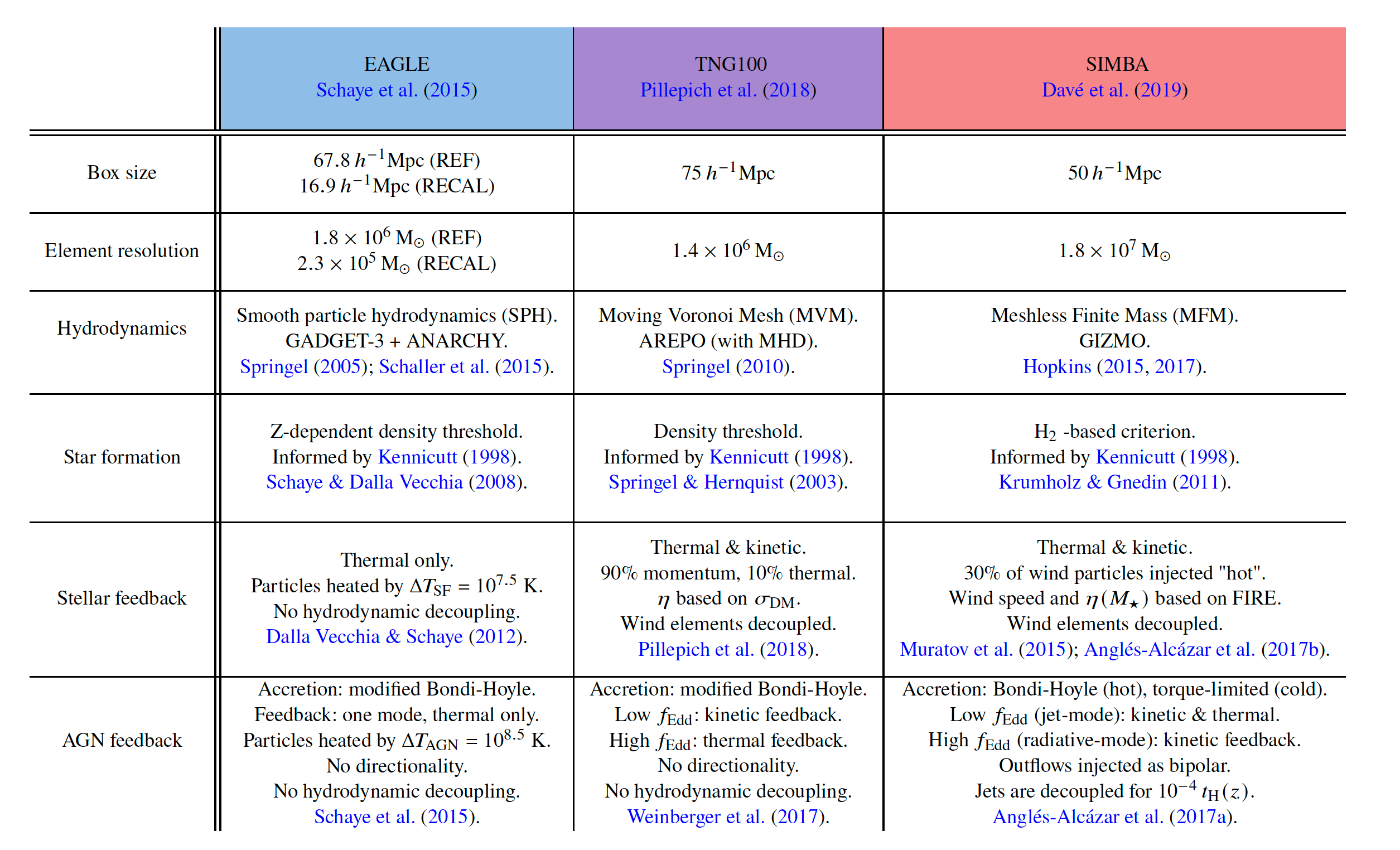

Table 1 from Wright et al. (2024)

Description of the simulations used for this study:EAGLE,TNG, and SIMBA.

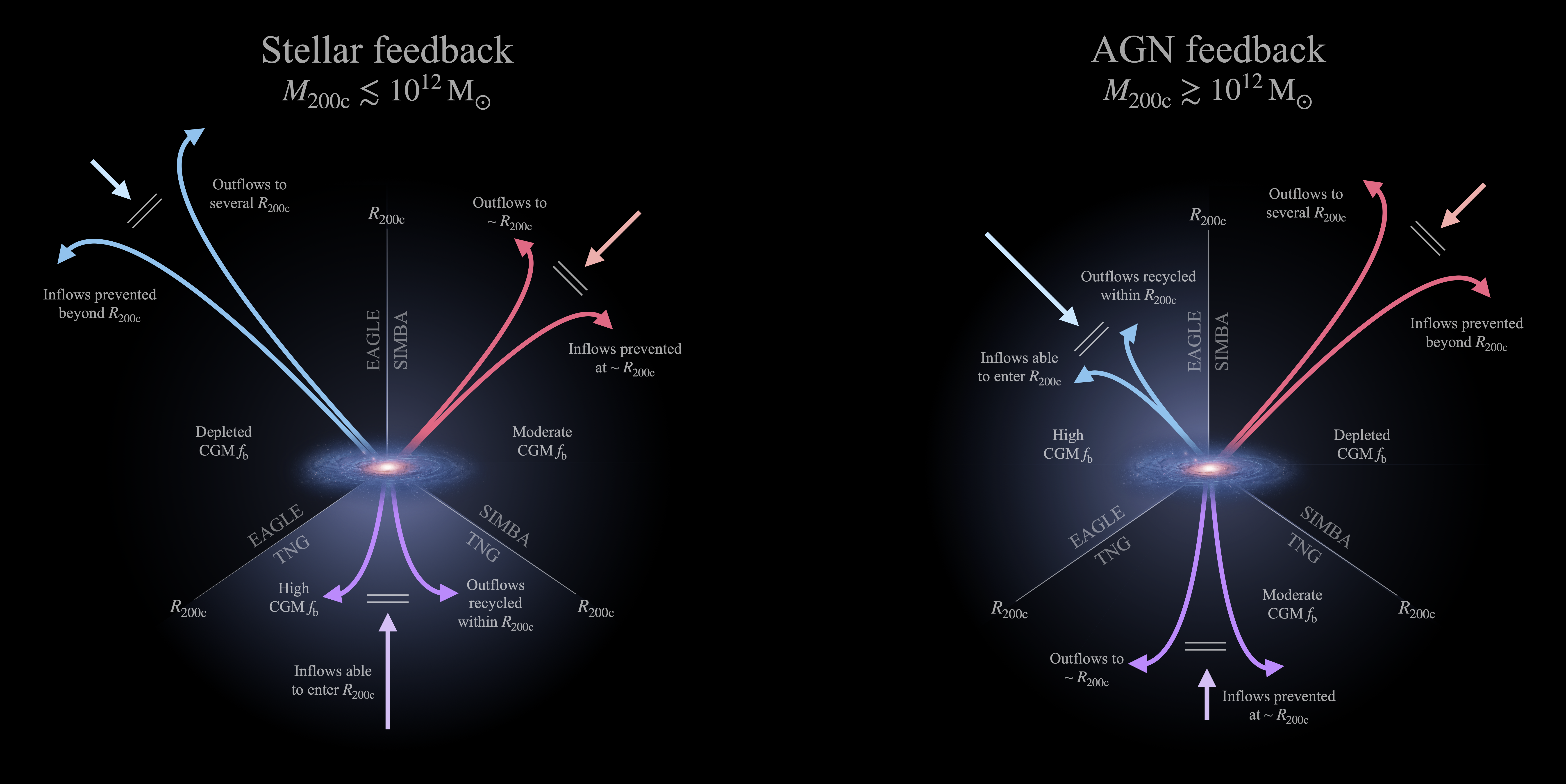

Figure 8 from Wright et al. (2024)

Schematic diagram summarising the different gas flow paradigms found in EAGLE, TNG and SIMBA, split into low mass haloes where stellar feedback dominates (left), and higher mass haloes where AGN feedback dominates (right)

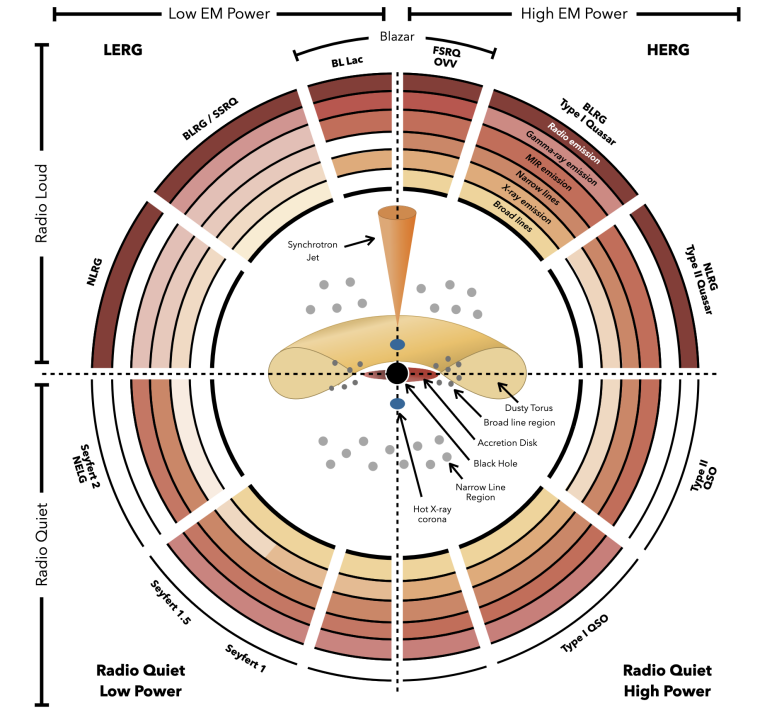

From AGN Unification Diagram

Quenching mechanisms of galaxies

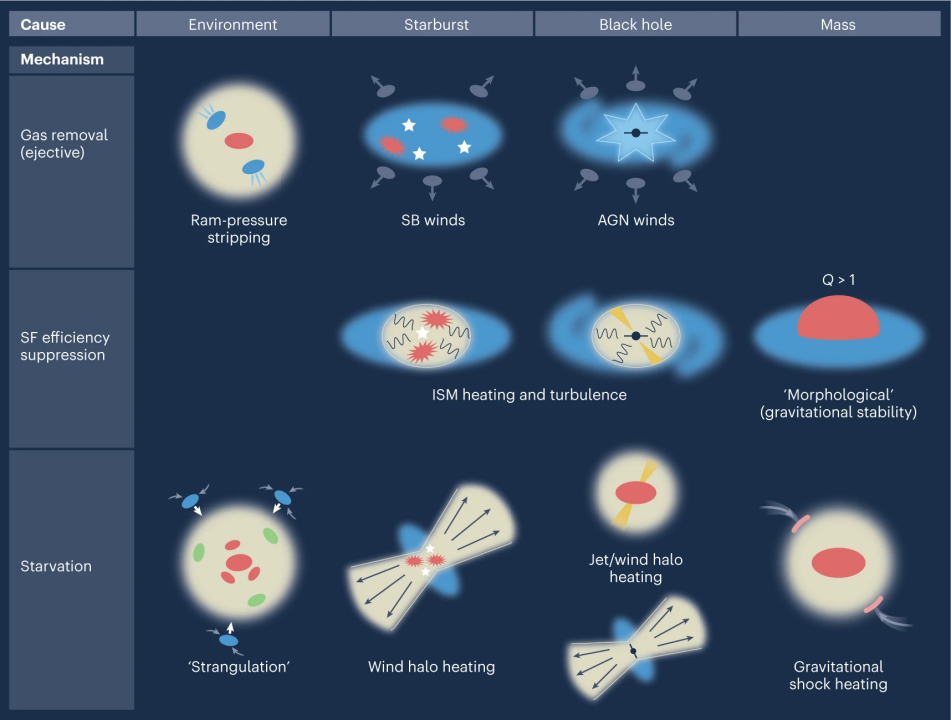

Figure 1 from Curtis-Lake et al. (2023)

Causes and mechanisms of galaxy quenching

Figure 1 from Peng et al. (2015)

Illustration of two different quenching scenarios and their effect on stellar metallicities

Reflection Comptonization

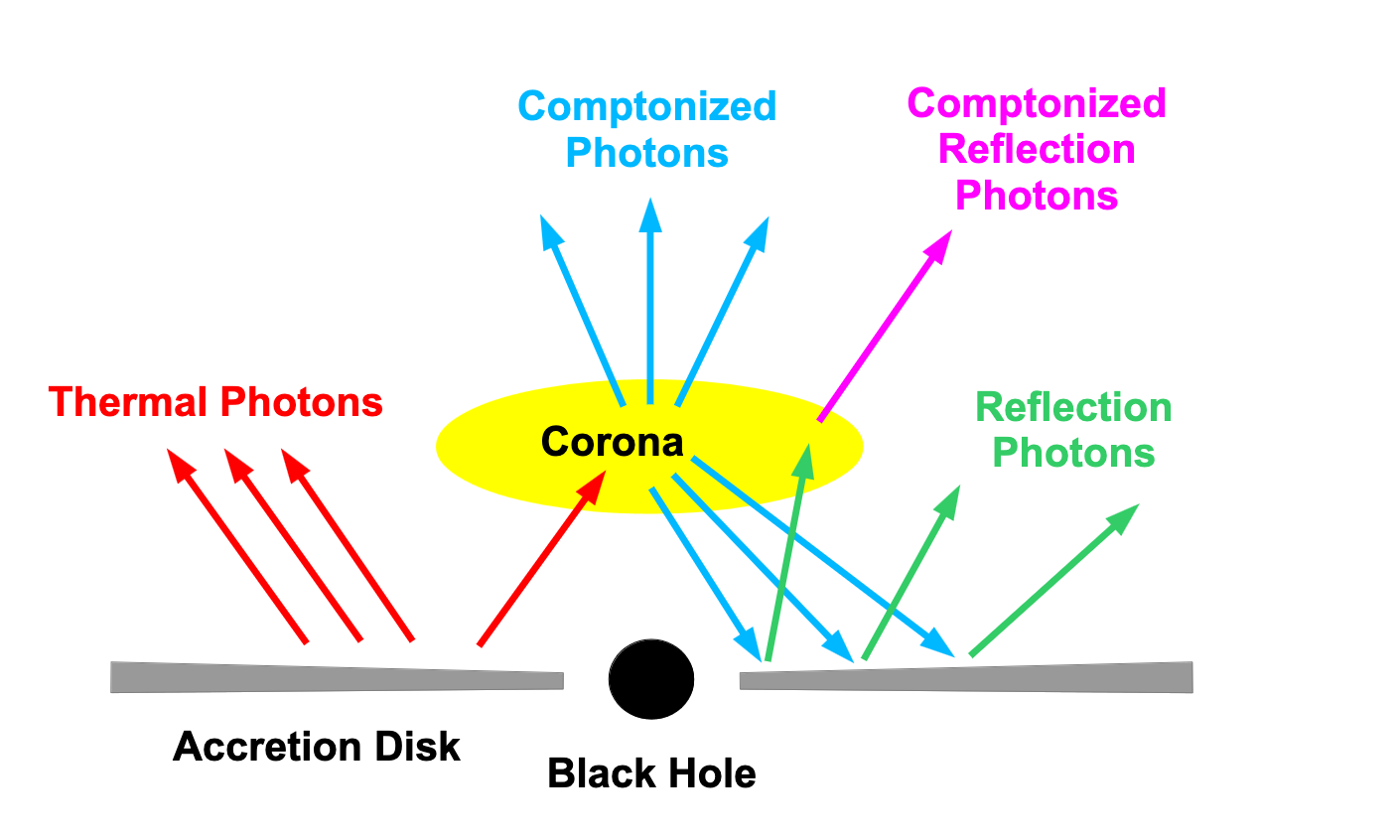

Figure 1 from Li et al. (2024)

Disk-corona system with reflection Comptonization.

Correlations of supermassive black hole winds in X-ray

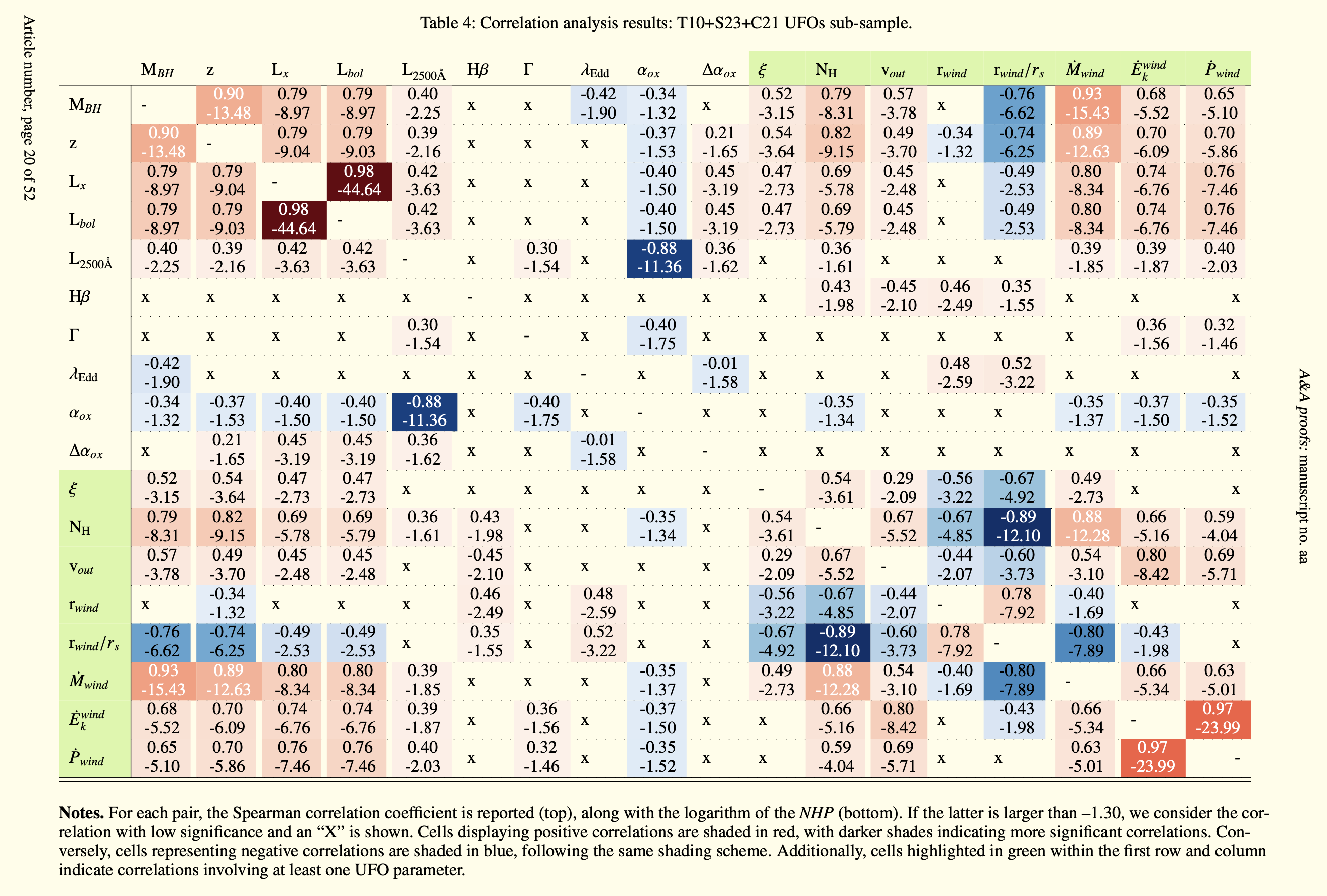

Table 4: Correlation analysis results: T10+S23+C21 UFOs sub-sample from Gianolli et al. (2024)

How to interpret [$\alpha$/Fe] vs [Fe/H] diagrams
